PRODUCTS
VCO
VCO
VCO

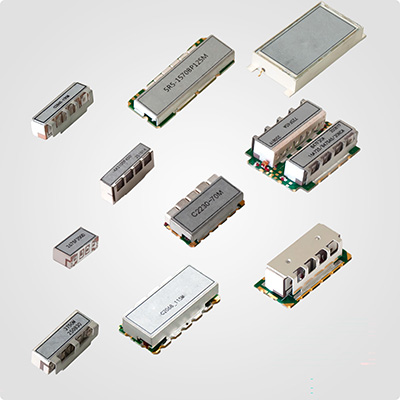

Part Number Center Freq.
(MHz)
Bandwidth
(MHz)
I.L. (dB)
max.
Ripple (dB)
max.
Return Loss
(dB) min.
Attenuation
(dB) min.
Size
(mm)
Datasheet RFQ
AF5A485S70KCA 485 70 1.0 0.5 14.0 10.0 dBc @ 400MHz
10.0 dBc @ 570MHz
40.0 dBc @ 350MHz
40.0 dBc @ 620MHz
32.0x25.0x8.0 RFQ
AF5A640S10FCA 640 10* 5.0 0.5 14.0 35 dBc @ 670MHz
70 dBc @ 700MHz
30 dBc @ 610MHz
35 dBc @ 580MHz
23.0x18.5x5.5 RFQ
AF5A745F90HCA 745 90 2.0 1.0 4.0 30 @ 660MHz
30 @ 866MHz
40 @ 1000~1650MHz
26.5x16.4x6.5 RFQ
AF4A815S5DCA 815 5 3.0 1.0 14.0 40 @ f0+100MHz 13.0x15.4x4.5 RFQ
AF4A850S20DCA 850 20 6.0 - 14.0 50 @ 1000MHz
40 @ 600MHz
40 @ 5650~6050MHz
40 @ 6400~6900MHz
18.5x15.4x4.5 RFQ
AF6A997F8FCA 997 8 6.5 1.0 14.0 60 dBc @ f0+35MHz
65 dBc @ f0-35MHz
26.0x14.0x5.2 RFQ
AF5A1130S340NCA 1130 340 0.8 0.5 14.0 30 @ 810MHz
22 @ 1450MHz
45 @ 660MHz
40 @ 1600MHz
60 @ 460MHz
65 @ 1800MHz
40 @ 6000MHz
47.0x23.0x9.5 RFQ
AF5A1223S120FCA 1223 120 2.0 0.5 12.0 55 @ DC~1003MHz
5 @ 1003~1120MHz
10 @ 1320~1565MHz
50 @ 1565~1900MHz
55 @ 1900~6500MHz
30.0x16.0x5.5 RFQ
AF6B1300F125FCA 1300 125 2.5 0.5 15.0 50 dBc @ DC~1000MHz
50 dBc @ 1500~6000MHz
38.11x14.6x5.5 RFQ
AF6A1300F200HCC 1300 200 1.5 0.2 14.0 60 @ 1000MHz
65 @ 2000MHz
32.5x13.0x6.1 RFQ
AF4A1380S300DCA 1380 300 1.0 1.0 14.0 30 dBc @1000MHz
38 dBc @2000MHz
13.0x12.0x4.0 RFQ
AF6A1490S50FCA 1490 50 2.5 1.5 14.0 50 @ 1290~1330MHz
40 @ 1400MHz
5 @ 1450MHz
5 @ 1530MHz
26.4x14.0x4.83 RFQ
AF10A1500F600FCB 1500 600 2.0 1.0 14.0 50 @ 1000MHz
40 @ 2000MHz
30 @ 2000~4800MHz
50.0x16.0x5.1 RFQ
AF6B1570F125FCA 1570 125 1.8 0.5 15.0 50 dBc @ 1800-6000MHz 38.11x14.6x5.5 RFQ
AF10A1985F370FCA 1985 370 2.3 1.0 15.0 50 @ 1600MHz
50 @ 2500MHz
70 @ 2400MHz
42.0x14.5x5.1 RFQ
AF6A2430S400FCA 2430 400 3.0 2.0 12.0 70 @ 1310MHz
60 @ 1930MHz
30 @ 2810MHz
25.4x12.0x5.0 RFQ
AF6A2630S400FCA 2630 400 3.0 2.0 12.0 70 @ 1310MHz
60 @ 1930MHz
30 @ 3000MHz
25.4x11.5x5.0 RFQ
AF8A2775S600FCA 2775 600 2.0 1.0 14.0 60 dBc @ 2000MHz
50 dBc @ 3500MHz
34.5x14.5x5.2 RFQ
AF6A3100S400FCB 3100 400 2.0 1.0 14.0 40 @ 2600MHz
45 @ 3700~7800MHz
25.4x12.5x5.0 RFQ
AF6A3300S400FCB 3300 400 2.0 1.0 14.0 40 @ 2600MHz
45 @ 3900~7800MHz
25.4x12.5x5.0 RFQ
MF2A514F8KCA 514 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x14.5x6.0 RFQ
MF2A546F8KCA 546 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x13.6x6.0 RFQ
MF2A602F8KCA 602 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x12.3x6.0 RFQ
MF2A650F8KCA 650 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x11.4x6.0 RFQ
MF2A1762S10DCA 1762 10 3.0 1.0 14.0 40 @ 2020~2200MHz 4.7x4.5x3.3 RFQ
MF2A4950F100BCA 4950 100 1.6 - 9.54 15 @ 4550MHz
9 @ 5250~5350MHz
20 @ 5490~5710MHz
30 @ 5725~5850MHz
3.4x3.0x1.7 RFQ
MF2A4965F150DCA 4965 150 1.3 - 9.54 55 @ DC~1700MHz
40 @ 2845MHz
40 @ 4190MHz
6.0x4.57x3.0 RFQ
MF2A5047F305BCA 5047.5 305 2.0 - 9.54 50 @ 0.1~1990MHz
45 @ 2400~2484MHz
30 @ 3200~3500MHz
15 @ 6650~6850MHz
20 @ 4435~4895MHz
20 @ 5200~5820MHz
3.8x3.15x2.0 RFQ
MF2A5800F150BCD 5800 150 2.2 - 9.54 53 @ DC~1990MHz
38 @ 3300MHz
40 @ 5000MHz
12 @ 5425MHz
8 @ 6175MHz
25 @ 6800MHz
3.0x2.8x1.6 RFQ
MF3A634S35DCA 634.5 35 2.5 0.3 16.0 30 @ DC~350MHz
25 @ 728~768MHz
30 @ 862~894MHz
8.0x10.5x3.0 RFQ
MF3A748S40DCA 748 40 2.2 0.2 15.0 15 @ 600~678MHz
15 @ 818~900MHz
25 @ 1000~1500MHz
10 @ 1500~1550MHz
3 @ 1800~1930MHz
40 @ 100~350MHz
8.0x10.3x3.0 RFQ
MF3A748S40DCB 748 40 2.5 0.2 17.0 35 @ 200~450MHz
25 @ 450~652MHz
25 @ 869~1000MHz
1.5 @ 777~798MHz
15 @ 817~849MHz
25 @ 862~894MHz
0 @ 1695~1955MHz
0 @ 2110~2690MHz
5.5 @ 663~698MHz
1.4 @ 698~716MHz
8.0x10.3x3.0 RFQ
MF3A780S45DCA 780.5 45 2.2 0.2 15.0 15 @ 650~708MHz
15 @ 853~900MHz
23 @ 1000~1500MHz
40 @ 100~350MHz
8.0x9.9x3.0 RFQ
MF3A878S32DCC 878 32 2.7 0.3 15.0 20 @ 768~812MHz
20 @ 944~1000MHz
28 @ 1000~1500MHz
30 @ 400~768MHz
40 @ DC~400MHz
8.0x8.6x3.0 RFQ
MF3A916F20NCA 916 20 1.0 1.0 14.0 6 @ 856~886MHz
6 @ 946~976MHz
16.0x13.0x8.0 RFQ
MF3A1227F20GCA 1227.6 20 1.5 0.5 1.0 35 @ 1087.6MHz
7 @ 1192.6MHz
7 @ 1262.6MHz
30 @ 1367.6MHz
11.75x9.22x4.5 RFQ
MF3A1574F21GCA 1574.9 21 1.8 0.5 10.0 35 @ 1435.4MHz
7 @ 1540.4MHz
7 @ 1610.4MHz
30 @ 1715.4MHz
11.75x7.55x4.5 RFQ
MF3A1732S45DCA 1732.5 45 3.0 0.2 17.0 25 @ 698~849MHz
25 @ 1850~1915MHz
8.0x6.8x3.0 RFQ
MF3A2145S70DCB 2145 70 2.7 0.3 17.0 20 @ 1930~2010MHz
20 @ 2285~2345MHz
30 @ 2345~3000MHz
40 @ DC~1930MHz
8.0x7.4x3.0 RFQ
MF3A2310S10DCB 2310 10 2.8 0.3 15.0 40 @ 700~800MHz
35 @ 817~849MHz
35 @ 1850~1915MHz
30 @ 1710~1755MHz
5 @ 2332.5MHz
25 @ 2500~2700MHz
35 @ 2700~3000MHz
8.7x5.0x3.0 RFQ
MF3A2352S15DCA 2352.5 15 2.7 0.2 17.0 20 @ 2180~2245MHz
20 @ 2460~2620MHz
30 @ 2620~3000MHz
30 @ 1930~2180MHz
40 @ DC~1930MHz
8.0x6.7x3.0 RFQ
MF3A2355S10DCA 2355 10 2.0 0.2 17.0 40 @ 727~757MHz
35 @ 862~894MHz
35 @ 1930~1995MHz
30 @ 2110~2155MHz
25 @ 2550~2700MHz
35 @ 2700~3000MHz
8.0x6.8x3.0 RFQ
MF3A2595F70CCB 2595 70 2.0 1.0 9.5 8.0 @ 2704MHz
37 @ 2848MHz
33 @ 3136~3206MHz
6.7x4.1x2.4 RFQ
MF3A2655S70DCA 2655 70 2.7 0.3 17.0 20 @ 2400~2520MHz
20 @ 2790~3000MHz
40 @ DC~2000MHz
25 @ 2000~2400MHz
8.0x5.9x3.0 RFQ
MF3A3300F400DCF 3300 400 0.8 0.5 12.0 30 @ 2600MHz
22 @ 4000MHz
6.7x4.5x3.0 RFQ
MF3A3449F100CCB 3449.79 100.5 1.5 1.0 9.5 40 @ 2487.5~2588MHz
45 @ 2943.5~3044MHz
6.7x4.6x2.5 RFQ
MF3A3450F120DCA 3450 120 2.0 0.4 9.5 45 @ 2944~3044MHz
20 @ 3800~4200MHz
8.1x3.3x3 RFQ
MF3A3500F200CCC 3500 200 1.5 1.0 9.5 35 @ 3020MHz
17 @ 3800MHz
6.7x4.6x2.5 RFQ
MF3A3650F100CCB 3650 100 2.0 0.5 9.5 40 @ 2900~3000MHz
35 @ 3250~3350MHz
26 @ 3950~4050MHz
6.7x4.2x2.5 RFQ
MF3A3700F200CCB 3700 200 1.45 1.0 9.5 30 @ 3250MHz
15 @ 4050MHz
6.7x4.3x2.5 RFQ
MF4A777F45FCA 777.5 45 3.0 0.5 17.0 45 dBc @ 487~645MHz
  45 dBc @ 1280~1300MHz
10.8x9.0x3.6 RFQ
MF4A806F30FCA 806 30 3.0 0.5 17.0 45 dBc @ 600~710MHz
25 dBc @ 925~960MHz
40 dBc @ 1041~1300MHz
10.8x8.4x3.6 RFQ
MF4A878F32FCA 878 32 3.0 0.6 17.0 35 @ 200~728MHz
25 @ 728~757MHz
4 @ 855.5MHz
25 @ 1000~1900MHz
10.8x8.6x3.5 RFQ
MF4A942F35FCA 942.5 35 3.0 0.7 15.0 45 @ 460~710MHz
20 @ 791~821MHz
45 @ 1041MHz
45 @ 1122~1157MHz
40 @ 1420~1460MHz
15 @ 2090MHz
10.8x8.0x3.6 RFQ
MF4A1882F65FCA 1882.5 65 4.3 2.5 10.0 5 dBc @ 1922.5MHz
30 dBc @ 100~1800MHz
30 dBc @ 2110~2700MHz
10.0x6.1x3.6 RFQ
MF4A1962F65FCA 1962.5 65 3.0 1.0 15.0 3 dBc @1922.5MHz
20 dBc @ 100~1800MHz
30 dBc @ 2110~2700MHz
10x5.9x3.6 RFQ
MF4A2050S100FCA 2050 100 1.7 - 14.0 30 @ fo±150MHz 9.6x7.6x3.5 RFQ
MF4A2072S95MCA 2072.5 95 1.0 0.5 14.0 20 dBc @ 1850~1950MHz
25 dBc @ 2200~2300MHz
11.6x7.8x7.0 RFQ
MF4A2250S100HCC 2250 100 1.5 0.5 14.0 25 @ 2120MHz
25 @ 2380MHz
11.5x6.7x5.0 RFQ
MF4A2600F220DCA 2600 220 1.2 - 10.0 25 @ 2044~2234MHz
35 @ 2956~3146MHz
38 @ 3412~3602MHz
8.1x3.8x3.0 RFQ
MF4A2675F200FCA 2675 200 2.0 1.0 9.5 30 @ 2375MHz
30 @ 2f0MHz
1 @ 3f0MHz
11.9x5.6x3.8 RFQ
MF4A2725F200FCA 2725 200 3.2 1.3 14.0 40 @ 2225MHz
40 @ 3225MHz
11.9x5.6x3.8 RFQ
MF4A3350F100FCD 3350 100 3.5 1.2 14.0 30 @ 3010MHz
30 @ 3780MHz
11.9x7.5x3.8 RFQ
MF4A3400F200FCA 3400 200 3.2 1.3 14.0 40 @ 2900MHz
40 @ 3900MHz
11.9x6.5x3.8 RFQ
MF4A3300F400DCD 3300 400 2.0 0.5 12.0 30 @ 2600~2850MHz
30 @ 3750~4000MHz
6.8x4.2x4.0 RFQ
MF4A5450F700DCA 5450 700 2.0 1.0 10.0 55 @ 2400MHz
7 @ 4950MHz
5 @ 5950MHz
8.6x3.7x2.7 RFQ
MF4A5240F180DCB 5240 180 3.2 1.8 10.0 38 @ 30~2700MHz
16 @ 3453~3547MHz
33 @ 3667~3883MHz
50 @ 5490~5850MHz
20 @ 7200~7500MHz
8.6x4.05x2.7 RFQ
MF4A5670F360DCC 5670 360 2.8 1.5 10.0 38 @ 30~2700MHz
16 @ 3453~3547MHz
33 @ 3667~3883MHz
50 @ 5150~5330MHz
15 @ 7200~7500MHz
8.6x3.7x2.7 RFQ
MC4A1630F52FCA 1630 52 3.5 1.0 15.0 14.0 @ fo±55MHz
30.0 @ fo±100MHz
60.0 @ 1884MHz
35.0 @ 3400MHz
35.0 @ 3520MHz
23.0 @ 3680MHz
11.9x9.2x4.2 RFQ
MC4A1842S75DCA 1842.5 75 2.5 0.3 15.0 40 @ 30~1700MHz
35 @ 1950~2800MHz
8.0x7.8x3.2 RFQ
MC4A1900F200FCA 1900 200 1.2 0.5 16.0 40 @ 1600MHz
40 @ 2200~2800MHz
30 @ 2800~3500MHz
10.64x7.4x3.85 RFQ
MC4A2250F300FCB 2250 300 1.0 0.5 18.0 45 @ DC~1850MHz
25 @ 1850~1950MHz
35 @ 3000-3400MHz
8 @ 6000MHz
10.84x7.5x3.85 RFQ
MC4A2275F250FCA 2275 250 1.0 1.0 18.0 40 @ DC~1900MHz
45 @ 2650~3500MHz
10.0x8.0x3.95 RFQ
MC4A2300F200FCG 2300 200 1.0 0.5 18.0 30 @ DC~2000MHz
35 @ 3000~3400MHz
30 @ 4000MHz
35 @ 6000MHz
10.84x7.5x3.85 RFQ
MC4A2300F400FCA 2300 400 1.3 0.5 14.0 40 @ 10~1500MHz
25 @ 1500~1900MHz
20 @ 2700~3500MHz
10.8x5.9x3.95 RFQ
MC4A2300F400FCB 2300 400 1.2 0.7 16.0 40 @ DC~1800MHz
40 @ 2900~3100MHz
10.84x7.1x3.95 RFQ
MC4A2350F100FCC 2350 100 2.0 1.0 10.0 40 @ 0.1~2100MHz
40 @ 2600~4000MHz
25 @ 4000~5000MHz
10.7x7.8x3.90 RFQ
MC4A2400F30FCA 2400 30 3.0 0.5 14.0 35 dBc @ 2260MHz
25 dBc @ 2600MHz
30 dBc @ 3000MHz
10.0x7.7x3.95 RFQ
MC4A2970F4FCA 2970 4 3.0 1.0 18.0 40 @ 2700~2900MHz
50 @ 0~2700MHz
40 @ 3150~5000MHz
10.8x6.6x4.2 RFQ
MC4A5375F350FCA 5375 350 3.0 1.0 14.0 15 @ 5700MHz
45 @ 6000MHz
20 @ 5000MHz
45 @ 4700MHz
10.0x5.2x3.95 RFQ
MP5A1413S45FCA 1413 45 1.9 1.0 14.0 40 @ 1200MHz
40 @ 1600MHz
60 @ 800MHz
60 @ 2000MHz
17.80x12.70x5.08 RFQ
MP5A2265S131FCA 2265.5 131 3.0 0.6 14.0 30 dBc @ 2120MHz
30 dBc @ 2420MHz
40 dBc @ 1509~1604MHz
14.0x10.0x5.0 RFQ
MC6A456F11NCA 456 11 5.0 1.5 16.0 25 min @ 467MHz 24.0x17.25x8.0 RFQ
MC6A742F89HCA 742.5 89 2.0 0.8 15.0 50 dBc @ DC~520MHz
25 dBc @ 520~616MHz
20 dBc @ 657MHz
20 dBc @ 862~894MHz
13.0x10.7x5.0 RFQ
MC6A833F32HCA 833 32 2.2 0.5 16.0 30 dBc @ DC~600MHz
25 dBc @ 617~768MHz
30 dBc @ 979~1100MHz
7 dBc @ 862~894MHz
13.0x10.4x5.0 RFQ
MC6A1030F13HCB 1030 13 5.0 1.1 14.0 11 dBc @ f0-12MHz
9 dBc @ f0+12MHz
31 dBc @ f0±17MHz
41 dBc @ f0-130~ f0-22MHz
41 dBc @ f0+22~f0+190MHz
20.5x13.3x5.4 RFQ
MC6A1090F13HCB 1090 13 5.0 1.1 14.0 11 dBc @ f0-12MHz
9 dBc @ f0+12MHz
31 dBc @ f0±17MHz
41 dBc @ f0-130~f0-22MHz
41 dBc @ f0+22~f0+190MHz
20.5x12.6x5.4 RFQ
MC6A1725F70HCA 1725 70 2.0 1.0 14.0 65 @1550MHz
40 @1830MHz
50 @ fo±150MHz
20.5x8.4x5.4 RFQ
MC6A1737F85HCA 1737.5 85 2.0 0.4 17.0 50 dBc @ DC~960MHz
25 dBc @ 1520~1590MHz
10 dBc @ 1635MHz
30 dBc @ 1930~1995MHz
40 dBc @ 2100~2200MHz
50 dBc @ 2300~2700MHz
20 dBc @ 2300~2800MHz
13.0x7.8x5.0 RFQ
MC6A1745F70HCA 1745 70 2.0 0.3 17.0 50 dBc @ DC~960MHz
25 dBc @ 1520~1590MHz
10 dBc @ 1650MHz
0 dBc @ 1930~1995MHz
40 dBc @ 2100~2200MHz
42 dBc @ 2300~2700MHz
20 dBc @ 2300~2800MHz
13.0x7.8x5.0 RFQ
MC6A1820F140HCA 1820 140 2.0 1.0 14.0 25 @ 1700MHz
40 @ 1950MHz
50 @ f0±150MHz
20.5x8.0x5.4 RFQ
MC6A1882F65HCA 1882.5 65 2.6 1.0 15.0 50 dBc @ DC~894MHz
25 dBc @ 1703~1780MHz
20 @ 1809MHz
5 dBc @ 1930~1995MHz
40 dBc @ 2100~2200MHz
50 dBc @ 2300~2500MHz
40 dBc @ 2500~3000MHz
13.0x7.5x5.0 RFQ
MC6A1962F225HCA 1962.5 225 2.0 0.4 16.0 45 @ DC~350MHz
40 @ 1590~1655MHz
25 @ 1655~1720MHz
7.0 @ 1720~1785MHz
2.0 @ 1785~1800MHz
2.0 @ 2125~2140 MHz
4.0 @ 2140~2205MHz
21 @ 2205~2270MHz
40 @ 2270~2335MHz
15 @ 3860~3990MHz
13.0x6.4x5.0 RFQ
MC6A1975F270HCA 1975 270 2.0 0.35 16.0 45 @ DC~350MHz
40 @ 1590~1655MHz
25 @ 1655~1720MHz
7 @ 1695~1780MHz
18 @ 2205~2270MHz
35 @ 2270~2335MHz
15 @ 3860~3990MHz
13.0x6.4x5.0 RFQ
MC6A2070F104HCA 2070 104 2.5 1.0 14.0 50 dBc @ DC~1900MHz
40 dBc @ 2240~2340MHz
13.0x9.2x5.0 RFQ
MC6A2125F140HCA 2125 140 2.0 0.5 14.0 40 dBc @ 1770MHz
30 dBc @ 1980MHz
40 dBc @ 2400MHz
65 dBc @ 2610MHz
20.5x9.0x5.4 RFQ
MC6A2155F270HCA 2155 270 2.0 0.3 15.0 45 @ DC~350MHz
35 @ 1700~1730MHz
25 @ 1730~1820MHz
20 @ 1820~1910MHz
4.0 @ 1910~1965MHz
5.0 @ 2345~2400MHz
17 @ 2400~2490MHz
35 @ 2490~2580MHz
45 @ 2580~2690MHz
15 @ 4220~4400MHz
13.0x7.9x5.0 RFQ
MC6A2250F104HCA 2250 104 2.5 1.0 14.0 50 dBc @ DC~2122MHz
40 dBc @ 2378~2478MHz
13.0x8.5x5.0 RFQ
MC6A2250F100HCK 2250 100 3.0 1.0 14.0 50 dBc @ 2120MHz
50 dBc @ 2380MHz
13x8.5x5.0 RFQ
MC6A2250F100HCM 2250 100 3.0 1.0 14.0 50 dBc @ DC~2120MHz
50 dBc @ 2380~2480MHz
13x8.2x5.0 RFQ
MC6A2312F15HCA 2312.5 15 2.8 0.5 15.0 50 dBc @ DC~894MHz
40 dBc @ 1930~1995MHz
30 dBc @ 2110~2200MHz
6.5 dBc @ 2345~2360MHz
40 dBc @ 2426MHz
50 dBc @ 2496~2690MHz
50 dBc @ 3400~3600MHz
13x8.0x5.0 RFQ
MC6A2352F95HCA 2352.5 95 2.0 0.4 16.0 45 @ DC~350MHz
40 @ 2000~2005MHz
35 @ 2005~2060MHz
25 @ 2060~2100MHz
12 @ 2100~2200MHz
8.5 @ 2495~2605MHz
25 @ 2605~2645MHz
35 @ 2645~2690MHz
24 @ 2690~2700MHz
15 @ 4690~4720MHz
13.0x6.8x5.0 RFQ
MC6A2592F395HCA 2592.5 395 2.0 0.4 16.0 45 @ DC~350MHz
40 @ 2110~2175MHz
35 @ 2175~2235MHz
20 @ 2235~2295MHz
5 @ 2865~2925MHz
15 @ 2925~2985MHz
24 @ 2985~3045MHz
14 @ 4992~5380MHz
13x6.3x5.0 RFQ
MC6A2593F194HCA 2593 194 3.0 0.6 15.0 30 dBc @ DC~350MHz
50 dBc @ 728~757MHz
50 dBc @ 862~894MHz
40 dBc @ 1930~1995MHz
30 dBc @ 2110~2200MHz
20 dBc @ 2345~2360MHz
50 dBc @ 3400~3800MHz
13.0x7.0x5.0 RFQ
MC6A2593F582HCA 2593 582 3.0 0.5 15.0 40 @ 50~600MHz
30 @ 600~1500MHz
10 @ 3010~3020MHz
35 @ 3200~4500MHz
13.0x6.2x5.0 RFQ
MC6A2735F80HCA 2735 80 2.0 0.5 14.0 35 dBc @ 2130MHz
25 dBc @ 2340MHz
30 dBc @ 2840MHz
20.5x7.3x5.4 RFQ
MC6A2840F135HCA 2840 135 2.0 0.5 14.0 35 dBc @ 2260MHz
25 dBc @ 2600MHz
30 dBc @ 3000MHz
20.5x6.5x5.4 RFQ
MC6A3100F450NCA 3100 450 0.9 0.5 14.0 30 @ 2250MHz
20 @ 2700 MHz
20 @ 3600~5000MHz
24.0x8.2x8.1 RFQ
MC6A3750F900NCA 3750 900 1.2 0.5 14.0 54 @ 1~2700MHz
43 @ 2701~3000MHz
40 @ 4600~6000MHz
25.9x7.0x8.0 RFQ
MC6A3950F300FCA 3950 300 2.0 1.0 12.0 60 dBc @ 3350MHz
60 dBc @ 4750MHz
19.5x7.1x4.42 RFQ
MC6A3950F500NCA 3950 500 1.7 1.2 14.0 47 @ 1~2700MHz
38 @ 2700~3500MHz
25 @ 3500~3600MHz
5 @ 3600~3660MHz
2 @ 3660~3680MHz
2 @ 4220~4240MHz
5 @ 4240~4300MHz
25 @ 4300~4400MHz
38 @ 4400~5590MHz
25 @ 5950~7000MHz
25.9x7.0x8.0 RFQ
MC6A4700F600NCC 4700 600 1.4 1.2 14.0 40 @ 1~3800MHz
25 @ 5150~7200MHz
25.9x8.0x6.0 RFQ
MC6A4737F525FCA 4737.5 525 4.0 0.7 15.0 40 dBc @ DC~4200MHz
40 dBc @ 5250~7500MHz
18.0x5.8x4.2 RFQ
MC6A5775F100HCA 5775 100 5.0 1.0 12.0 30 @ 4000~5670MHz
30 @ 5880~7000MHz
20.5x5.3x5.4 RFQ
MC6A9325F650FCA 9325 650 4.0 1.0 15.0 40 dBc @ DC~8500MHz
40 dBc @ 10150~16000MHz
18.0x4.0x4.2 RFQ
MC6A9475F1050FCA 9475 1050 4.0 1.0 15.0 38 dBc @ DC~8500MHz
34 dBc @ 10450~16000MHz
18.0x4.8x4.2 RFQ
MC8A1150F100NCA 1150 100 2.5 1.0 15.0 40 @ DC~900MHz
20 @ 1000~1080MHz
20 @ 1220~1300MHz
40 @ 1300~1700MHz
30.0x10.2x8.5 RFQ
MC8A2350F100NCA 2350 100 1.8 1.1 14.0 40 @ 10~2110MHz
45 @ 2110~2170MHz
25 @ 2200~2250MHz
9 @ 2250~2280MHz
9 @ 2420~2443MHz
30 @ 2444~2500MHz
40 @ 2500~2690MHz
15 @ 2690~3000MHz
32.5x7.9x8.44 RFQ
MC8A2862F85HCA 2862.5 85 3.0 1.0 14.0 65 @ 2750MHz
65 @ 2975MHz
32.0x8.9x5.35 RFQ
MC8A2937F85HCA 2937.5 85 3.0 1.0 14.0 65 @ 2825MHz
65 @ 3050MHz
32.0x8.7x5.35 RFQ
MC8A3012F85HCA 3012.5 85 3.0 1.0 14.0 65 @ 2900MHz
65 @ 3125MHz
32.0x8.5x5.35 RFQ
MC8A3025F250HCA 3025 250 3.0 1.0 14.0 65 @ 2700MHz
65 @ 3350MHz
32.0x8.5x5.35 RFQ
MC8A3085F80HCA 3085 80 3.0 1.0 14.0 65 @ 2970MHz
65 @ 3200MHz
32.0x8.4x5.35 RFQ
MC8A3950F500KCA 3950 500 1.7 1.2 14.0 47 @ 1~2700MHz
38 @ 2700~3500MHz
30 @ 3500~3600MHz
10 @ 3600~3660MHz
2 @ 3660~3680MHz
2 @ 4220~4240MHz
10 @ 4240~4300MHz
30 @ 4300~4400MHz
38 @ 4400~5590MHz
25 @ 5950~7000MHz
27.0x7.0x6.3 RFQ
MC8A4700F600KCA 4700 600 1.7 1.2 14.0 40 @ 1~3800MHz
40 @ 5150~7200MHz
27.0x7.0x6.3 RFQ
MP8A1300F100NCA 1300 100 1.5 0.8 17.6 50 @ 1400~1500MHz
60 @ 1550~1650MHz
33.4x11.5x9.0 RFQ
MP8A1450F100NCB 1450 100 1.5 0.8 17.6 50 @ 1250~1350MHz
40 @ 1550~1650MHz
33.4x11.5x9.0 RFQ
MP8A2657F66HCB 2657 66 2.8 0.5 12.7 45 @ 2500~2568MHz
50 @ 2400~2473MHz
50 @ 824~2025MHz
30 @ 5248~5380MHz
50x11.5x6.2 RFQ
MP8A2668F44HCB 2668 44 2.8 0.5 12.7 45 @ 2500~2568MHz
50 @ 2400~2473MHz
50 @ 824~2025MHz
30 @ 4892~5380MHz
30 @ 7338~8070MHz
50x11.5x6.2 RFQ
MP8A3950F500NCA 3950 500 1.9 1.0 15.0 45 @ 1~3500MHz
15 @ 3620MHz
15 @ 4280MHz
50 @ 4600~6000MHz
40.0x8.5x8.8 RFQ
MP10C670F60NCA 670 60 4.0 1.0 14.0 70 @ 600MHz
60 @ 740MHz
42.0x17.0x9.0 RFQ
MP10C680F35NCA 680.5 35 3.2 1.5 14.0 45 @ 617~652MHz 42.0x17.0x9.0 RFQ
MP10C1810F200NCA 1810 200 3.0 2.0 14.0 30 @ 1930~2155MHz
45 @ 617~652MHz
42.0x17.0x9.0 RFQ
WF4DA-1227B-11 1227 10 0.98 0.35 1.85 :1(VSWR) 22.9@fo – 140MHz
16.9@fo + 140MHz
12.5x8.7x5.0 RFQ
WF4DA-1237L-10 1237 60 1.4 0.9 2.0 :1(VSWR) 16.0@fo – 140MHz
11.0@fo + 140MHz
12.5x8.7x5.0 RFQ
WF4DA-1575B-14 1575.4 10 2.35 0.58 1.85 :1(VSWR) 18.4@fo – 50MHz
18.4@fo + 50MHz
12.5x8.7x5.0 RFQ
WF4DA-1591L-10 1591 60 1.2 0.6 2.0 :1(VSWR) 16.0@fo – 140MHz
11.0@fo + 140MHz
12.5x8.7x5.0 RFQ
WF4DB-704E-10 704 24 2.85 0.85 1.85 :1(VSWR) 40.75@fo – 100MHz
43.75@fo + 100MHz
17.5x8.7x5.0 RFQ
WF4DB-778B-10 778 8 2.85 0.85 1.85 :1(VSWR) 40.75@fo – 100MHz
43.75@fo + 100MHz
17.5x8.7x5.0 RFQ
WF4DB-815F-12 815 30 2.93 0.93 1.93 :1(VSWR) 40.75@fo – 100MHz
43.75@fo + 100MHz
17.5x8.7x5.0 RFQ
WF4DB-1030C-10 1030 15 3.05 0.78 1.45 :1(VSWR) 21.5@fo – 35MHz
21.5@fo + 35MHz
51.5@fo – 140MHz
51.5@fo + 140MHz
17.5x8.7x5.0 RFQ
WF4DB-1227D-10 1227 20 2.4 0.7 1.85 :1(VSWR) 15.9@fo – 35MHz
15.9@fo + 35MHz
43.9@fo – 140MHz
43.9@fo + 140MHz
17.5x8.7x5.0 RFQ
WF4DB-1236M-10 1236 64 1.2 0.5 1.8 :1(VSWR) 25@1084MHz
13@1384MHz
17.5x8.7x5.0 RFQ
WF4DB-1581P-10 1581 80 1.2 0.5 1.8 :1(VSWR) 19.0@1431MHz
14.0 @ 1731 MHz
17.5x8.7x5.0 RFQ
WF6DC-1090C-10 1090 15 2.8 0.7 1.8 :1(VSWR) 42.0@fo – 60MHz
42.0@fo + 60MHz
62.0@fo – 120MHz
62.0@fo + 120MHz
27x15x6.5 RFQ
WF6DSD-1090C-10 1090 15 3.30 0.8 1.8 :1(VSWR) 62.0@fo – 60MHz 24x14.3x5.5 RFQ
WF6DSD-881E-10 881.5 25 3.3 0.9 1.8 :1(VSWR) 26.0@fo – 32.5MHz
26.0@fo + 32.5MHz
24x14.3x6.5 RFQ
WF6DSD-881E-12T 881.5 25 3.35 1.13 1.63 :1(VSWR) 56.9@824 – 849MHz 24x15.3x6.5 RFQ
WF6DSD-902E-10 902.5 25 3.3 1.0 1.50 :1(VSWR) 27.0@fo – 32.5MHz
27.0@fo + 32.5MHz
24x14.3x6.5 RFQ
WF6DSD-947E-10T 947.5 25 3.2 1.3 1.70 :1(VSWR) 55.0@fo – 57.5MHz
15.0@fo + 32.5MHz
54.0@fo - 32.5MHz
33.0@fo + 112.5MHz
24x14.3x6.5 RFQ
WF6DSD-947E-11 947.5 25 3.3 0.9 1.60 :1(VSWR) 27.0@fo - 32.5MHz
27.0@fo + 32.5MHz
24x14.3x6.5 RFQ
WF6DSD-1030C-10 1030 15 2.6 0.6 1.70 :1(VSWR) 70.0@fo + 60MHz 24x14.3x6.5 RFQ
Part Number Center Freq.
(MHz)
Bandwidth
(MHz)
I.L. (dB)
max.
Ripple (dB)
max.
Return Loss
(dB) min.
Attenuation
(dB) min.
Size
(mm)
Datasheet RFQ
AF5A485S70KCA 485 70 1.0 0.5 14.0 10.0 dBc @ 400MHz
10.0 dBc @ 570MHz
40.0 dBc @ 350MHz
40.0 dBc @ 620MHz
32.0x25.0x8.0 RFQ
AF5A640S10FCA 640 10* 5.0 0.5 14.0 35 dBc @ 670MHz
70 dBc @ 700MHz
30 dBc @ 610MHz
35 dBc @ 580MHz
23.0x18.5x5.5 RFQ
AF5A745F90HCA 745 90 2.0 1.0 4.0 30 @ 660MHz
30 @ 866MHz
40 @ 1000~1650MHz
26.5x16.4x6.5 RFQ
AF4A815S5DCA 815 5 3.0 1.0 14.0 40 @ f0+100MHz 13.0x15.4x4.5 RFQ
AF4A850S20DCA 850 20 6.0 - 14.0 50 @ 1000MHz
40 @ 600MHz
40 @ 5650~6050MHz
40 @ 6400~6900MHz
18.5x15.4x4.5 RFQ
AF6A997F8FCA 997 8 6.5 1.0 14.0 60 dBc @ f0+35MHz
65 dBc @ f0-35MHz
26.0x14.0x5.2 RFQ
AF5A1130S340NCA 1130 340 0.8 0.5 14.0 30 @ 810MHz
22 @ 1450MHz
45 @ 660MHz
40 @ 1600MHz
60 @ 460MHz
65 @ 1800MHz
40 @ 6000MHz
47.0x23.0x9.5 RFQ
AF5A1223S120FCA 1223 120 2.0 0.5 12.0 55 @ DC~1003MHz
5 @ 1003~1120MHz
10 @ 1320~1565MHz
50 @ 1565~1900MHz
55 @ 1900~6500MHz
30.0x16.0x5.5 RFQ
AF6B1300F125FCA 1300 125 2.5 0.5 15.0 50 dBc @ DC~1000MHz
50 dBc @ 1500~6000MHz
38.11x14.6x5.5 RFQ
AF6A1300F200HCC 1300 200 1.5 0.2 14.0 60 @ 1000MHz
65 @ 2000MHz
32.5x13.0x6.1 RFQ
AF4A1380S300DCA 1380 300 1.0 1.0 14.0 30 dBc @1000MHz
38 dBc @2000MHz
13.0x12.0x4.0 RFQ
AF6A1490S50FCA 1490 50 2.5 1.5 14.0 50 @ 1290~1330MHz
40 @ 1400MHz
5 @ 1450MHz
5 @ 1530MHz
26.4x14.0x4.83 RFQ
AF10A1500F600FCB 1500 600 2.0 1.0 14.0 50 @ 1000MHz
40 @ 2000MHz
30 @ 2000~4800MHz
50.0x16.0x5.1 RFQ
AF6B1570F125FCA 1570 125 1.8 0.5 15.0 50 dBc @ 1800-6000MHz 38.11x14.6x5.5 RFQ
AF10A1985F370FCA 1985 370 2.3 1.0 15.0 50 @ 1600MHz
50 @ 2500MHz
70 @ 2400MHz
42.0x14.5x5.1 RFQ
AF6A2430S400FCA 2430 400 3.0 2.0 12.0 70 @ 1310MHz
60 @ 1930MHz
30 @ 2810MHz
25.4x12.0x5.0 RFQ
AF6A2630S400FCA 2630 400 3.0 2.0 12.0 70 @ 1310MHz
60 @ 1930MHz
30 @ 3000MHz
25.4x11.5x5.0 RFQ
AF8A2775S600FCA 2775 600 2.0 1.0 14.0 60 dBc @ 2000MHz
50 dBc @ 3500MHz
34.5x14.5x5.2 RFQ
AF6A3100S400FCB 3100 400 2.0 1.0 14.0 40 @ 2600MHz
45 @ 3700~7800MHz
25.4x12.5x5.0 RFQ
AF6A3300S400FCB 3300 400 2.0 1.0 14.0 40 @ 2600MHz
45 @ 3900~7800MHz
25.4x12.5x5.0 RFQ
MF2A514F8KCA 514 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x14.5x6.0 RFQ
MF2A546F8KCA 546 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x13.6x6.0 RFQ
MF2A602F8KCA 602 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x12.3x6.0 RFQ
MF2A650F8KCA 650 8 1.2 0.5 14.0 25 @ f0±100MHz 11.3x11.4x6.0 RFQ
MF2A1762S10DCA 1762 10 3.0 1.0 14.0 40 @ 2020~2200MHz 4.7x4.5x3.3 RFQ
MF2A4950F100BCA 4950 100 1.6 - 9.54 15 @ 4550MHz
9 @ 5250~5350MHz
20 @ 5490~5710MHz
30 @ 5725~5850MHz
3.4x3.0x1.7 RFQ
MF2A4965F150DCA 4965 150 1.3 - 9.54 55 @ DC~1700MHz
40 @ 2845MHz
40 @ 4190MHz
6.0x4.57x3.0 RFQ
MF2A5047F305BCA 5047.5 305 2.0 - 9.54 50 @ 0.1~1990MHz
45 @ 2400~2484MHz
30 @ 3200~3500MHz
15 @ 6650~6850MHz
20 @ 4435~4895MHz
20 @ 5200~5820MHz
3.8x3.15x2.0 RFQ
MF2A5800F150BCD 5800 150 2.2 - 9.54 53 @ DC~1990MHz
38 @ 3300MHz
40 @ 5000MHz
12 @ 5425MHz
8 @ 6175MHz
25 @ 6800MHz
3.0x2.8x1.6 RFQ
MF3A634S35DCA 634.5 35 2.5 0.3 16.0 30 @ DC~350MHz
25 @ 728~768MHz
30 @ 862~894MHz
8.0x10.5x3.0 RFQ
MF3A748S40DCA 748 40 2.2 0.2 15.0 15 @ 600~678MHz
15 @ 818~900MHz
25 @ 1000~1500MHz
10 @ 1500~1550MHz
3 @ 1800~1930MHz
40 @ 100~350MHz
8.0x10.3x3.0 RFQ
MF3A748S40DCB 748 40 2.5 0.2 17.0 35 @ 200~450MHz
25 @ 450~652MHz
25 @ 869~1000MHz
1.5 @ 777~798MHz
15 @ 817~849MHz
25 @ 862~894MHz
0 @ 1695~1955MHz
0 @ 2110~2690MHz
5.5 @ 663~698MHz
1.4 @ 698~716MHz
8.0x10.3x3.0 RFQ
MF3A780S45DCA 780.5 45 2.2 0.2 15.0 15 @ 650~708MHz
15 @ 853~900MHz
23 @ 1000~1500MHz
40 @ 100~350MHz
8.0x9.9x3.0 RFQ
MF3A878S32DCC 878 32 2.7 0.3 15.0 20 @ 768~812MHz
20 @ 944~1000MHz
28 @ 1000~1500MHz
30 @ 400~768MHz
40 @ DC~400MHz
8.0x8.6x3.0 RFQ
MF3A916F20NCA 916 20 1.0 1.0 14.0 6 @ 856~886MHz
6 @ 946~976MHz
16.0x13.0x8.0 RFQ
MF3A1227F20GCA 1227.6 20 1.5 0.5 1.0 35 @ 1087.6MHz
7 @ 1192.6MHz
7 @ 1262.6MHz
30 @ 1367.6MHz
11.75x9.22x4.5 RFQ
MF3A1574F21GCA 1574.9 21 1.8 0.5 10.0 35 @ 1435.4MHz
7 @ 1540.4MHz
7 @ 1610.4MHz
30 @ 1715.4MHz
11.75x7.55x4.5 RFQ
MF3A1732S45DCA 1732.5 45 3.0 0.2 17.0 25 @ 698~849MHz
25 @ 1850~1915MHz
8.0x6.8x3.0 RFQ
MF3A2145S70DCB 2145 70 2.7 0.3 17.0 20 @ 1930~2010MHz
20 @ 2285~2345MHz
30 @ 2345~3000MHz
40 @ DC~1930MHz
8.0x7.4x3.0 RFQ
MF3A2310S10DCB 2310 10 2.8 0.3 15.0 40 @ 700~800MHz
35 @ 817~849MHz
35 @ 1850~1915MHz
30 @ 1710~1755MHz
5 @ 2332.5MHz
25 @ 2500~2700MHz
35 @ 2700~3000MHz
8.7x5.0x3.0 RFQ
MF3A2352S15DCA 2352.5 15 2.7 0.2 17.0 20 @ 2180~2245MHz
20 @ 2460~2620MHz
30 @ 2620~3000MHz
30 @ 1930~2180MHz
40 @ DC~1930MHz
8.0x6.7x3.0 RFQ
MF3A2355S10DCA 2355 10 2.0 0.2 17.0 40 @ 727~757MHz
35 @ 862~894MHz
35 @ 1930~1995MHz
30 @ 2110~2155MHz
25 @ 2550~2700MHz
35 @ 2700~3000MHz
8.0x6.8x3.0 RFQ
MF3A2595F70CCB 2595 70 2.0 1.0 9.5 8.0 @ 2704MHz
37 @ 2848MHz
33 @ 3136~3206MHz
6.7x4.1x2.4 RFQ
MF3A2655S70DCA 2655 70 2.7 0.3 17.0 20 @ 2400~2520MHz
20 @ 2790~3000MHz
40 @ DC~2000MHz
25 @ 2000~2400MHz
8.0x5.9x3.0 RFQ
MF3A3300F400DCF 3300 400 0.8 0.5 12.0 30 @ 2600MHz
22 @ 4000MHz
6.7x4.5x3.0 RFQ
MF3A3449F100CCB 3449.79 100.5 1.5 1.0 9.5 40 @ 2487.5~2588MHz
45 @ 2943.5~3044MHz
6.7x4.6x2.5 RFQ
MF3A3450F120DCA 3450 120 2.0 0.4 9.5 45 @ 2944~3044MHz
20 @ 3800~4200MHz
8.1x3.3x3 RFQ
MF3A3500F200CCC 3500 200 1.5 1.0 9.5 35 @ 3020MHz
17 @ 3800MHz
6.7x4.6x2.5 RFQ
MF3A3650F100CCB 3650 100 2.0 0.5 9.5 40 @ 2900~3000MHz
35 @ 3250~3350MHz
26 @ 3950~4050MHz
6.7x4.2x2.5 RFQ
MF3A3700F200CCB 3700 200 1.45 1.0 9.5 30 @ 3250MHz
15 @ 4050MHz
6.7x4.3x2.5 RFQ
MF4A777F45FCA 777.5 45 3.0 0.5 17.0 45 dBc @ 487~645MHz
  45 dBc @ 1280~1300MHz
10.8x9.0x3.6 RFQ
MF4A806F30FCA 806 30 3.0 0.5 17.0 45 dBc @ 600~710MHz
25 dBc @ 925~960MHz
40 dBc @ 1041~1300MHz
10.8x8.4x3.6 RFQ
MF4A878F32FCA 878 32 3.0 0.6 17.0 35 @ 200~728MHz
25 @ 728~757MHz
4 @ 855.5MHz
25 @ 1000~1900MHz
10.8x8.6x3.5 RFQ
MF4A942F35FCA 942.5 35 3.0 0.7 15.0 45 @ 460~710MHz
20 @ 791~821MHz
45 @ 1041MHz
45 @ 1122~1157MHz
40 @ 1420~1460MHz
15 @ 2090MHz
10.8x8.0x3.6 RFQ
MF4A1882F65FCA 1882.5 65 4.3 2.5 10.0 5 dBc @ 1922.5MHz
30 dBc @ 100~1800MHz
30 dBc @ 2110~2700MHz
10.0x6.1x3.6 RFQ
MF4A1962F65FCA 1962.5 65 3.0 1.0 15.0 3 dBc @1922.5MHz
20 dBc @ 100~1800MHz
30 dBc @ 2110~2700MHz
10x5.9x3.6 RFQ
MF4A2050S100FCA 2050 100 1.7 - 14.0 30 @ fo±150MHz 9.6x7.6x3.5 RFQ
MF4A2072S95MCA 2072.5 95 1.0 0.5 14.0 20 dBc @ 1850~1950MHz
25 dBc @ 2200~2300MHz
11.6x7.8x7.0 RFQ
MF4A2250S100HCC 2250 100 1.5 0.5 14.0 25 @ 2120MHz
25 @ 2380MHz
11.5x6.7x5.0 RFQ
MF4A2600F220DCA 2600 220 1.2 - 10.0 25 @ 2044~2234MHz
35 @ 2956~3146MHz
38 @ 3412~3602MHz
8.1x3.8x3.0 RFQ
MF4A2675F200FCA 2675 200 2.0 1.0 9.5 30 @ 2375MHz
30 @ 2f0MHz
1 @ 3f0MHz
11.9x5.6x3.8 RFQ
MF4A2725F200FCA 2725 200 3.2 1.3 14.0 40 @ 2225MHz
40 @ 3225MHz
11.9x5.6x3.8 RFQ
MF4A3350F100FCD 3350 100 3.5 1.2 14.0 30 @ 3010MHz
30 @ 3780MHz
11.9x7.5x3.8 RFQ
MF4A3400F200FCA 3400 200 3.2 1.3 14.0 40 @ 2900MHz
40 @ 3900MHz
11.9x6.5x3.8 RFQ
MF4A3300F400DCD 3300 400 2.0 0.5 12.0 30 @ 2600~2850MHz
30 @ 3750~4000MHz
6.8x4.2x4.0 RFQ
MF4A5450F700DCA 5450 700 2.0 1.0 10.0 55 @ 2400MHz
7 @ 4950MHz
5 @ 5950MHz
8.6x3.7x2.7 RFQ
MF4A5240F180DCB 5240 180 3.2 1.8 10.0 38 @ 30~2700MHz
16 @ 3453~3547MHz
33 @ 3667~3883MHz
50 @ 5490~5850MHz
20 @ 7200~7500MHz
8.6x4.05x2.7 RFQ
MF4A5670F360DCC 5670 360 2.8 1.5 10.0 38 @ 30~2700MHz
16 @ 3453~3547MHz
33 @ 3667~3883MHz
50 @ 5150~5330MHz
15 @ 7200~7500MHz
8.6x3.7x2.7 RFQ
MC4A1630F52FCA 1630 52 3.5 1.0 15.0 14.0 @ fo±55MHz
30.0 @ fo±100MHz
60.0 @ 1884MHz
35.0 @ 3400MHz
35.0 @ 3520MHz
23.0 @ 3680MHz
11.9x9.2x4.2 RFQ
MC4A1842S75DCA 1842.5 75 2.5 0.3 15.0 40 @ 30~1700MHz
35 @ 1950~2800MHz
8.0x7.8x3.2 RFQ
MC4A1900F200FCA 1900 200 1.2 0.5 16.0 40 @ 1600MHz
40 @ 2200~2800MHz
30 @ 2800~3500MHz
10.64x7.4x3.85 RFQ
MC4A2250F300FCB 2250 300 1.0 0.5 18.0 45 @ DC~1850MHz
25 @ 1850~1950MHz
35 @ 3000-3400MHz
8 @ 6000MHz
10.84x7.5x3.85 RFQ
MC4A2275F250FCA 2275 250 1.0 1.0 18.0 40 @ DC~1900MHz
45 @ 2650~3500MHz
10.0x8.0x3.95 RFQ
MC4A2300F200FCG 2300 200 1.0 0.5 18.0 30 @ DC~2000MHz
35 @ 3000~3400MHz
30 @ 4000MHz
35 @ 6000MHz
10.84x7.5x3.85 RFQ
MC4A2300F400FCA 2300 400 1.3 0.5 14.0 40 @ 10~1500MHz
25 @ 1500~1900MHz
20 @ 2700~3500MHz
10.8x5.9x3.95 RFQ
MC4A2300F400FCB 2300 400 1.2 0.7 16.0 40 @ DC~1800MHz
40 @ 2900~3100MHz
10.84x7.1x3.95 RFQ
MC4A2350F100FCC 2350 100 2.0 1.0 10.0 40 @ 0.1~2100MHz
40 @ 2600~4000MHz
25 @ 4000~5000MHz
10.7x7.8x3.90 RFQ
MC4A2400F30FCA 2400 30 3.0 0.5 14.0 35 dBc @ 2260MHz
25 dBc @ 2600MHz
30 dBc @ 3000MHz
10.0x7.7x3.95 RFQ
MC4A2970F4FCA 2970 4 3.0 1.0 18.0 40 @ 2700~2900MHz
50 @ 0~2700MHz
40 @ 3150~5000MHz
10.8x6.6x4.2 RFQ
MC4A5375F350FCA 5375 350 3.0 1.0 14.0 15 @ 5700MHz
45 @ 6000MHz
20 @ 5000MHz
45 @ 4700MHz
10.0x5.2x3.95 RFQ
MP5A1413S45FCA 1413 45 1.9 1.0 14.0 40 @ 1200MHz
40 @ 1600MHz
60 @ 800MHz
60 @ 2000MHz
17.80x12.70x5.08 RFQ
MP5A2265S131FCA 2265.5 131 3.0 0.6 14.0 30 dBc @ 2120MHz
30 dBc @ 2420MHz
40 dBc @ 1509~1604MHz
14.0x10.0x5.0 RFQ
MC6A456F11NCA 456 11 5.0 1.5 16.0 25 min @ 467MHz 24.0x17.25x8.0 RFQ
MC6A742F89HCA 742.5 89 2.0 0.8 15.0 50 dBc @ DC~520MHz
25 dBc @ 520~616MHz
20 dBc @ 657MHz
20 dBc @ 862~894MHz
13.0x10.7x5.0 RFQ
MC6A833F32HCA 833 32 2.2 0.5 16.0 30 dBc @ DC~600MHz
25 dBc @ 617~768MHz
30 dBc @ 979~1100MHz
7 dBc @ 862~894MHz
13.0x10.4x5.0 RFQ
MC6A1030F13HCB 1030 13 5.0 1.1 14.0 11 dBc @ f0-12MHz
9 dBc @ f0+12MHz
31 dBc @ f0±17MHz
41 dBc @ f0-130~ f0-22MHz
41 dBc @ f0+22~f0+190MHz
20.5x13.3x5.4 RFQ
MC6A1090F13HCB 1090 13 5.0 1.1 14.0 11 dBc @ f0-12MHz
9 dBc @ f0+12MHz
31 dBc @ f0±17MHz
41 dBc @ f0-130~f0-22MHz
41 dBc @ f0+22~f0+190MHz
20.5x12.6x5.4 RFQ
MC6A1725F70HCA 1725 70 2.0 1.0 14.0 65 @1550MHz
40 @1830MHz
50 @ fo±150MHz
20.5x8.4x5.4 RFQ
MC6A1737F85HCA 1737.5 85 2.0 0.4 17.0 50 dBc @ DC~960MHz
25 dBc @ 1520~1590MHz
10 dBc @ 1635MHz
30 dBc @ 1930~1995MHz
40 dBc @ 2100~2200MHz
50 dBc @ 2300~2700MHz
20 dBc @ 2300~2800MHz
13.0x7.8x5.0 RFQ
MC6A1745F70HCA 1745 70 2.0 0.3 17.0 50 dBc @ DC~960MHz
25 dBc @ 1520~1590MHz
10 dBc @ 1650MHz
0 dBc @ 1930~1995MHz
40 dBc @ 2100~2200MHz
42 dBc @ 2300~2700MHz
20 dBc @ 2300~2800MHz
13.0x7.8x5.0 RFQ
MC6A1820F140HCA 1820 140 2.0 1.0 14.0 25 @ 1700MHz
40 @ 1950MHz
50 @ f0±150MHz
20.5x8.0x5.4 RFQ
MC6A1882F65HCA 1882.5 65 2.6 1.0 15.0 50 dBc @ DC~894MHz
25 dBc @ 1703~1780MHz
20 @ 1809MHz
5 dBc @ 1930~1995MHz
40 dBc @ 2100~2200MHz
50 dBc @ 2300~2500MHz
40 dBc @ 2500~3000MHz
13.0x7.5x5.0 RFQ
MC6A1962F225HCA 1962.5 225 2.0 0.4 16.0 45 @ DC~350MHz
40 @ 1590~1655MHz
25 @ 1655~1720MHz
7.0 @ 1720~1785MHz
2.0 @ 1785~1800MHz
2.0 @ 2125~2140 MHz
4.0 @ 2140~2205MHz
21 @ 2205~2270MHz
40 @ 2270~2335MHz
15 @ 3860~3990MHz
13.0x6.4x5.0 RFQ
MC6A1975F270HCA 1975 270 2.0 0.35 16.0 45 @ DC~350MHz
40 @ 1590~1655MHz
25 @ 1655~1720MHz
7 @ 1695~1780MHz
18 @ 2205~2270MHz
35 @ 2270~2335MHz
15 @ 3860~3990MHz
13.0x6.4x5.0 RFQ
MC6A2070F104HCA 2070 104 2.5 1.0 14.0 50 dBc @ DC~1900MHz
40 dBc @ 2240~2340MHz
13.0x9.2x5.0 RFQ
MC6A2125F140HCA 2125 140 2.0 0.5 14.0 40 dBc @ 1770MHz
30 dBc @ 1980MHz
40 dBc @ 2400MHz
65 dBc @ 2610MHz
20.5x9.0x5.4 RFQ
MC6A2155F270HCA 2155 270 2.0 0.3 15.0 45 @ DC~350MHz
35 @ 1700~1730MHz
25 @ 1730~1820MHz
20 @ 1820~1910MHz
4.0 @ 1910~1965MHz
5.0 @ 2345~2400MHz
17 @ 2400~2490MHz
35 @ 2490~2580MHz
45 @ 2580~2690MHz
15 @ 4220~4400MHz
13.0x7.9x5.0 RFQ
MC6A2250F104HCA 2250 104 2.5 1.0 14.0 50 dBc @ DC~2122MHz
40 dBc @ 2378~2478MHz
13.0x8.5x5.0 RFQ
MC6A2250F100HCK 2250 100 3.0 1.0 14.0 50 dBc @ 2120MHz
50 dBc @ 2380MHz
13x8.5x5.0 RFQ
MC6A2250F100HCM 2250 100 3.0 1.0 14.0 50 dBc @ DC~2120MHz
50 dBc @ 2380~2480MHz
13x8.2x5.0 RFQ
MC6A2312F15HCA 2312.5 15 2.8 0.5 15.0 50 dBc @ DC~894MHz
40 dBc @ 1930~1995MHz
30 dBc @ 2110~2200MHz
6.5 dBc @ 2345~2360MHz
40 dBc @ 2426MHz
50 dBc @ 2496~2690MHz
50 dBc @ 3400~3600MHz
13x8.0x5.0 RFQ
MC6A2352F95HCA 2352.5 95 2.0 0.4 16.0 45 @ DC~350MHz
40 @ 2000~2005MHz
35 @ 2005~2060MHz
25 @ 2060~2100MHz
12 @ 2100~2200MHz
8.5 @ 2495~2605MHz
25 @ 2605~2645MHz
35 @ 2645~2690MHz
24 @ 2690~2700MHz
15 @ 4690~4720MHz
13.0x6.8x5.0 RFQ
MC6A2592F395HCA 2592.5 395 2.0 0.4 16.0 45 @ DC~350MHz
40 @ 2110~2175MHz
35 @ 2175~2235MHz
20 @ 2235~2295MHz
5 @ 2865~2925MHz
15 @ 2925~2985MHz
24 @ 2985~3045MHz
14 @ 4992~5380MHz
13x6.3x5.0 RFQ
MC6A2593F194HCA 2593 194 3.0 0.6 15.0 30 dBc @ DC~350MHz
50 dBc @ 728~757MHz
50 dBc @ 862~894MHz
40 dBc @ 1930~1995MHz
30 dBc @ 2110~2200MHz
20 dBc @ 2345~2360MHz
50 dBc @ 3400~3800MHz
13.0x7.0x5.0 RFQ
MC6A2593F582HCA 2593 582 3.0 0.5 15.0 40 @ 50~600MHz
30 @ 600~1500MHz
10 @ 3010~3020MHz
35 @ 3200~4500MHz
13.0x6.2x5.0 RFQ
MC6A2735F80HCA 2735 80 2.0 0.5 14.0 35 dBc @ 2130MHz
25 dBc @ 2340MHz
30 dBc @ 2840MHz
20.5x7.3x5.4 RFQ
MC6A2840F135HCA 2840 135 2.0 0.5 14.0 35 dBc @ 2260MHz
25 dBc @ 2600MHz
30 dBc @ 3000MHz
20.5x6.5x5.4 RFQ
MC6A3100F450NCA 3100 450 0.9 0.5 14.0 30 @ 2250MHz
20 @ 2700 MHz
20 @ 3600~5000MHz
24.0x8.2x8.1 RFQ
MC6A3750F900NCA 3750 900 1.2 0.5 14.0 54 @ 1~2700MHz
43 @ 2701~3000MHz
40 @ 4600~6000MHz
25.9x7.0x8.0 RFQ
MC6A3950F300FCA 3950 300 2.0 1.0 12.0 60 dBc @ 3350MHz
60 dBc @ 4750MHz
19.5x7.1x4.42 RFQ
MC6A3950F500NCA 3950 500 1.7 1.2 14.0 47 @ 1~2700MHz
38 @ 2700~3500MHz
25 @ 3500~3600MHz
5 @ 3600~3660MHz
2 @ 3660~3680MHz
2 @ 4220~4240MHz
5 @ 4240~4300MHz
25 @ 4300~4400MHz
38 @ 4400~5590MHz
25 @ 5950~7000MHz
25.9x7.0x8.0 RFQ
MC6A4700F600NCC 4700 600 1.4 1.2 14.0 40 @ 1~3800MHz
25 @ 5150~7200MHz
25.9x8.0x6.0 RFQ
MC6A4737F525FCA 4737.5 525 4.0 0.7 15.0 40 dBc @ DC~4200MHz
40 dBc @ 5250~7500MHz
18.0x5.8x4.2 RFQ
MC6A5775F100HCA 5775 100 5.0 1.0 12.0 30 @ 4000~5670MHz
30 @ 5880~7000MHz
20.5x5.3x5.4 RFQ
MC6A9325F650FCA 9325 650 4.0 1.0 15.0 40 dBc @ DC~8500MHz
40 dBc @ 10150~16000MHz
18.0x4.0x4.2 RFQ
MC6A9475F1050FCA 9475 1050 4.0 1.0 15.0 38 dBc @ DC~8500MHz
34 dBc @ 10450~16000MHz
18.0x4.8x4.2 RFQ
MC8A1150F100NCA 1150 100 2.5 1.0 15.0 40 @ DC~900MHz
20 @ 1000~1080MHz
20 @ 1220~1300MHz
40 @ 1300~1700MHz
30.0x10.2x8.5 RFQ
MC8A2350F100NCA 2350 100 1.8 1.1 14.0 40 @ 10~2110MHz
45 @ 2110~2170MHz
25 @ 2200~2250MHz
9 @ 2250~2280MHz
9 @ 2420~2443MHz
30 @ 2444~2500MHz
40 @ 2500~2690MHz
15 @ 2690~3000MHz
32.5x7.9x8.44 RFQ
MC8A2862F85HCA 2862.5 85 3.0 1.0 14.0 65 @ 2750MHz
65 @ 2975MHz
32.0x8.9x5.35 RFQ
MC8A2937F85HCA 2937.5 85 3.0 1.0 14.0 65 @ 2825MHz
65 @ 3050MHz
32.0x8.7x5.35 RFQ
MC8A3012F85HCA 3012.5 85 3.0 1.0 14.0 65 @ 2900MHz
65 @ 3125MHz
32.0x8.5x5.35 RFQ
MC8A3025F250HCA 3025 250 3.0 1.0 14.0 65 @ 2700MHz
65 @ 3350MHz
32.0x8.5x5.35 RFQ
MC8A3085F80HCA 3085 80 3.0 1.0 14.0 65 @ 2970MHz
65 @ 3200MHz
32.0x8.4x5.35 RFQ
MC8A3950F500KCA 3950 500 1.7 1.2 14.0 47 @ 1~2700MHz
38 @ 2700~3500MHz
30 @ 3500~3600MHz
10 @ 3600~3660MHz
2 @ 3660~3680MHz
2 @ 4220~4240MHz
10 @ 4240~4300MHz
30 @ 4300~4400MHz
38 @ 4400~5590MHz
25 @ 5950~7000MHz
27.0x7.0x6.3 RFQ
MC8A4700F600KCA 4700 600 1.7 1.2 14.0 40 @ 1~3800MHz
40 @ 5150~7200MHz
27.0x7.0x6.3 RFQ
MP8A1300F100NCA 1300 100 1.5 0.8 17.6 50 @ 1400~1500MHz
60 @ 1550~1650MHz
33.4x11.5x9.0 RFQ
MP8A1450F100NCB 1450 100 1.5 0.8 17.6 50 @ 1250~1350MHz
40 @ 1550~1650MHz
33.4x11.5x9.0 RFQ
MP8A2657F66HCB 2657 66 2.8 0.5 12.7 45 @ 2500~2568MHz
50 @ 2400~2473MHz
50 @ 824~2025MHz
30 @ 5248~5380MHz
50x11.5x6.2 RFQ
MP8A2668F44HCB 2668 44 2.8 0.5 12.7 45 @ 2500~2568MHz
50 @ 2400~2473MHz
50 @ 824~2025MHz
30 @ 4892~5380MHz
30 @ 7338~8070MHz
50x11.5x6.2 RFQ
MP8A3950F500NCA 3950 500 1.9 1.0 15.0 45 @ 1~3500MHz
15 @ 3620MHz
15 @ 4280MHz
50 @ 4600~6000MHz
40.0x8.5x8.8 RFQ
MP10C670F60NCA 670 60 4.0 1.0 14.0 70 @ 600MHz
60 @ 740MHz
42.0x17.0x9.0 RFQ
MP10C680F35NCA 680.5 35 3.2 1.5 14.0 45 @ 617~652MHz 42.0x17.0x9.0 RFQ
MP10C1810F200NCA 1810 200 3.0 2.0 14.0 30 @ 1930~2155MHz
45 @ 617~652MHz
42.0x17.0x9.0 RFQ
WF4DA-1227B-11 1227 10 0.98 0.35 1.85 :1(VSWR) 22.9@fo – 140MHz
16.9@fo + 140MHz
12.5x8.7x5.0 RFQ
WF4DA-1237L-10 1237 60 1.4 0.9 2.0 :1(VSWR) 16.0@fo – 140MHz
11.0@fo + 140MHz
12.5x8.7x5.0 RFQ
WF4DA-1575B-14 1575.4 10 2.35 0.58 1.85 :1(VSWR) 18.4@fo – 50MHz
18.4@fo + 50MHz
12.5x8.7x5.0 RFQ
WF4DA-1591L-10 1591 60 1.2 0.6 2.0 :1(VSWR) 16.0@fo – 140MHz
11.0@fo + 140MHz
12.5x8.7x5.0 RFQ
WF4DB-704E-10 704 24 2.85 0.85 1.85 :1(VSWR) 40.75@fo – 100MHz
43.75@fo + 100MHz
17.5x8.7x5.0 RFQ
WF4DB-778B-10 778 8 2.85 0.85 1.85 :1(VSWR) 40.75@fo – 100MHz
43.75@fo + 100MHz
17.5x8.7x5.0 RFQ
WF4DB-815F-12 815 30 2.93 0.93 1.93 :1(VSWR) 40.75@fo – 100MHz
43.75@fo + 100MHz
17.5x8.7x5.0 RFQ
WF4DB-1030C-10 1030 15 3.05 0.78 1.45 :1(VSWR) 21.5@fo – 35MHz
21.5@fo + 35MHz
51.5@fo – 140MHz
51.5@fo + 140MHz
17.5x8.7x5.0 RFQ
WF4DB-1227D-10 1227 20 2.4 0.7 1.85 :1(VSWR) 15.9@fo – 35MHz
15.9@fo + 35MHz
43.9@fo – 140MHz
43.9@fo + 140MHz
17.5x8.7x5.0 RFQ
WF4DB-1236M-10 1236 64 1.2 0.5 1.8 :1(VSWR) 25@1084MHz
13@1384MHz
17.5x8.7x5.0 RFQ
WF4DB-1581P-10 1581 80 1.2 0.5 1.8 :1(VSWR) 19.0@1431MHz
14.0 @ 1731 MHz
17.5x8.7x5.0 RFQ
WF6DC-1090C-10 1090 15 2.8 0.7 1.8 :1(VSWR) 42.0@fo – 60MHz
42.0@fo + 60MHz
62.0@fo – 120MHz
62.0@fo + 120MHz
27x15x6.5 RFQ
WF6DSD-1090C-10 1090 15 3.30 0.8 1.8 :1(VSWR) 62.0@fo – 60MHz 24x14.3x5.5 RFQ
WF6DSD-881E-10 881.5 25 3.3 0.9 1.8 :1(VSWR) 26.0@fo – 32.5MHz
26.0@fo + 32.5MHz
24x14.3x6.5 RFQ
WF6DSD-881E-12T 881.5 25 3.35 1.13 1.63 :1(VSWR) 56.9@824 – 849MHz 24x15.3x6.5 RFQ
WF6DSD-902E-10 902.5 25 3.3 1.0 1.50 :1(VSWR) 27.0@fo – 32.5MHz
27.0@fo + 32.5MHz
24x14.3x6.5 RFQ
WF6DSD-947E-10T 947.5 25 3.2 1.3 1.70 :1(VSWR) 55.0@fo – 57.5MHz
15.0@fo + 32.5MHz
54.0@fo - 32.5MHz
33.0@fo + 112.5MHz
24x14.3x6.5 RFQ
WF6DSD-947E-11 947.5 25 3.3 0.9 1.60 :1(VSWR) 27.0@fo - 32.5MHz
27.0@fo + 32.5MHz
24x14.3x6.5 RFQ
WF6DSD-1030C-10 1030 15 2.6 0.6 1.70 :1(VSWR) 70.0@fo + 60MHz 24x14.3x6.5 RFQ
Remarks: *it is 3dB Bandwidth.

Download the selection guide
Please enter the password
Submit
This category is for authorized users only, please kindly email to "sales@sainty-tech.com" to obtain password
